Automatic Powder Vial Filling Line for Pharmaceutical Vials
Automatic Powder Vial Filling Line
The Dry powder filling machine from Pharma Fills is engineered for precise, clean, and reliable powder filling operations in pharmaceutical production. Designed for 10 ml, 20 ml, and 30 ml glass vials with 20 mm neck diameter, this line integrates vial feeding, air blowing, powder dosing, stopper insertion, aluminum cap sealing, and finished vial collection into one complete automated solution.
With its stainless-steel construction, controlled filling process, servo-driven auger dosing system, laminar flow protection, and dust extraction design, the line provides a professional solution for pharmaceutical powder filling applications where accuracy, hygiene, and process stability are essential
Line Process
The line is designed to support a complete Dry powder filling machine workflow:
1. Vial Feeding
Empty vials are automatically transferred from the turntable to the conveyor for continuous feeding into the production line.
2. Vial Air Blowing
Internal and external air blowing helps remove particles and dust from the vials before filling.
3. Powder Filling
A servo-driven auger filling system doses the required powder weight into each vial with controlled and repeatable filling performance.
4. Stopper Feeding
Rubber stoppers are automatically oriented and fed to the insertion station.
5. Stopper Insertion
The rubber stoppers are inserted accurately into the filled vials.
6. Aluminum Cap Feeding
Aluminum caps are automatically oriented and transferred to the cap sealing station.
7. Cap Sealing / Crimping
The aluminum caps are sealed securely onto the vials through the crimping process.
8. Finished Vial Collection
The sealed vials are transferred to the final accumulation turntable for downstream processing or manual collection.
Main Components
The line consists of several integrated modules designed to work together in a smooth and controlled production flow:
- Vial feeding turntable
- Vial air blowing machine
- Powder vial filling machine and stoppering machine
- Laminar flow protection system
- Dust extraction system
- Rubber stopper feeding system
- Aluminum cap feeding system
- Aluminum cap sealing / crimping machine
- Finished vial collection turntable
- PLC control system with HMI interface
Key Features
Complete Automated Process
The line covers the full production sequence from empty vial feeding to final sealed vial collection.
Servo Auger Filling System
The powder vial filling machine process is controlled by a servo-driven auger system, helping achieve stable and repeatable dosing performance.
Clean and Controlled Operation
The integration of laminar flow and dust extraction supports a cleaner filling environment and helps reduce powder contamination risks during operation.
Compact Line Design
With an approximate total line length of 9,400 mm, the system provides a complete production solution within an efficient footprint.
Flexible Vial Compatibility

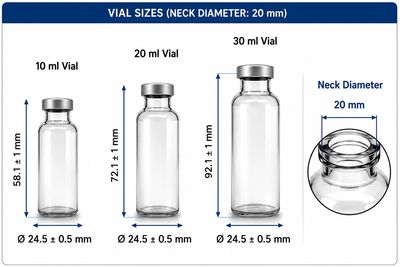

The line is suitable for 10 ml, 20 ml, and 30 ml vials with a 20 mm neck diameter, making it suitable for different pharmaceutical powder filling requirements.
Professional Pharmaceutical Design
Built with stainless-steel machine structures and pharmaceutical-oriented engineering, the line is designed for cleanability, durability, and reliable long-term operation.
Applications
This automatic powder vial filling line is suitable for pharmaceutical manufacturers working with powder products filled into glass vials, including:
- Injectable powder products
- Pharmaceutical dry powder formulations
- Sterile powder filling applications
- Powder vial filling production lines
- Small and medium vial powder packaging
Why Pharma Fills?
Pharma Fills provides pharmaceutical powder vial filling machine designed for precision, clean production, and reliable automation. Our engineering approach focuses on integrating filling, closing, protection, and control systems into practical solutions tailored to pharmaceutical production requirements.
From vial filling lines to syringe, cartridge, liquid, powder, and preparation systems, Pharma Fills delivers machinery solutions designed to support efficient and controlled pharmaceutical manufacturing.
Call to Action
Looking for a reliable automatic powder vial filling line for your pharmaceutical production?
